ROG STRIX B550-F Gaming WIFI II Review
ASUS has released its latest gaming motherboard, the ROG STRIX B 550-F motherboard designed for (3rd Gen Ryzen) chipset processors, That offer PCIe 4.0,WiFi 6E, and more. Read our review to see if it’s worth buying!
| Color |
Black |
|---|
4
People watching this product now!
Description
ROG STRIX B550-F Gaming WIFI II
The ROG Strix B550-F Gaming WiFi II motherboard is the latest offering from ASUS’ Republic of Gamers (ROG) line of gaming-centric hardware. This ATX-sized motherboard is pack with features that make it a superb choice for building a high-performance gaming PC.
One of the standout features of the B550-F Gaming WIFI II is its support for the latest AMD Ryzen processors. This motherboard is compatible with AMD’s AM4 socket, which means that it can support the latest AMD Ryzen 5000 series processors. This means that you’ll be able to get the best performance possible from your CPU, and you’ll be able to overclock it to get even more performance out of it.
Another key feature of the B550-F Gaming WIFI II is its impressive connectivity options. This motherboard comes equipped with WIFI 6 support, which means that you’ll be able to enjoy fast and reliable wireless connectivity. It also has two Ethernet ports, allowing you to connect to the internet using a wired connection if you prefer.
In terms of storage, the B550-F Gaming WIFI II has plenty of options. It has four DIMM slots, which means that you can install up to 128GB of DDR4 RAM. This motherboard also has six SATA III ports, so you can connect multiple storage drives and expand your storage capacity.
The B550-F Gaming WIFI II also has plenty of features that make it a excellent choice for gamers. It has an integrated SupremeFX S1220A audio codec, which provides high-quality audio for games, music, and movies. It also has Aura Sync RGB lighting, which allows you to customize the look of your system with RGB LED lighting.
Overall, the ROG Strix B550-F Gaming WiFi II is a powerful and feature-packed motherboard that is perfect for building a high-performance gaming PC. With its support for the latest AMD Ryzen processors, impressive connectivity options, and plenty of storage and gaming-centric features, it’s a excellent choice for any gamer.
AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
PERFORMANCE
- AMD AM4 Socket for AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
- Expansion slots
- 1 x PCIe 4.0 x16 slot (x16) CPU
- 1 x PCIe 3.0 x16 slot (x4) Chipset
- 3 x PCIe 3.0 x1 slots Chipset
- 12 + 2 power stages
- 4 x DIMM
- DDR4 5100MHz +
- Dual channel
- 2 x M.2 slots
- 1 x M.2 2242-22110 (PCIe 4.0 x4, SATA)
- 1 x M.2 2242-22110 (PCIe 3.0 x4, SATA)
PCIE 4.0
The ROG Strix B550-F Gaming WIFI II motherboard features two M.2 slots, one of which is compatible with PCIe 4.0. This allows for maximum storage flexibility and fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID, which can provide a performance boost.
Networking
WIFI 6E
Onboard WIFI 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
- All
- Gallery Item

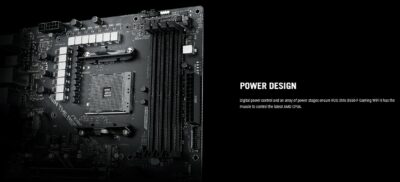

POWER DESIGN
PROCOOL POWER CONNECTOR

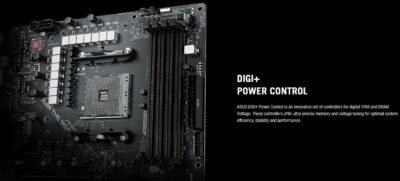

DIGI+ POWER CONTROL

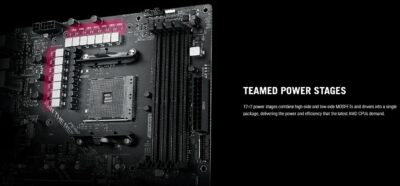

TEAMED POWER STAGES

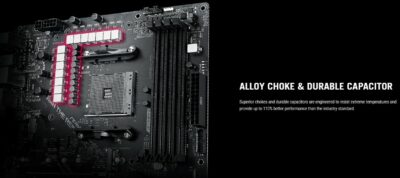

ALLOY CHKE & DURABLE CAPACITOR

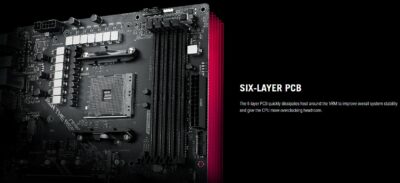

SIX-LAYER PCB
ROG STRIX B550-F WIFI II SPECIFICATIONS
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
B550
Memory
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory *
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory *
ECC Memory (ECC mode) support varies by CPU.
Graphics
1 x DisplayPort 1.2
1 x HDMI® 2.1
*Graphics specifications may vary between CPU types.
Expansion Slots
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
1 x PCIe 4.0 x16 Safe Slot (supports x16 mode)
AMD B550 chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
3 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet
1 x Intel® 2.5Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
WIFI 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB
Rear USB: Total 8 ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
Front USB: Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Dual OP Amplifiers
- Premium audio capacitors
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.
Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS Flashback button
Internal I/O Connectors
Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
Special Features
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
- ASUS Q-Slot
ASUS Thermal Solution
- M.2 heatsink
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
ASUS EZ DIY
- BIOS Flashback™ button
- BIOS Flashback™ LED
- Clear CMOS header
- ProCool
- Pre-mounted I/O shield
- Safe Slot
Software Features
ROG Exclusive Software
- RAM Cache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Over wolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3:
- Performance And Power Saving Utility
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
DAEMON Tools
Norton Anti-virus software (Free Trial version)
UEFI BIOS
ASUS EZ DIY
- ASUS Crash Free BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x Addressable RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX
30.5cm x 24.4cm
ASUS , ROG STRIX
B550-F
ROG STRIX B550-F Gaming WIFI II
QUESTION
How much RAM can the ROG Strix B550-F gaming?
The ROG Strix B550-F Gaming WIFI II motherboard has four DIMM slots, which support up to 128GB of DDR4 5100MHz+ memory in the dual channel configuration. This means that the maximum amount of RAM that can be installed on the motherboard is 128GB. It is important to note, however, that the actual amount of RAM that can be supported will depend on the specific type of memory modules used and the capabilities of the processor. It is always a good idea to consult the motherboard’s user manual and the processor’s specifications to determine the maximum amount of RAM that can be installed.
What is the difference between Rog Strix B550 E and F?
The Strix-F motherboard has a single PCIe 4.0 slot, which mean it does not support Crossfire or SLI. The Strix-E, on the other hand, has two PCIe 4.0 slots, which can be configured for 1×16 or 2×8 bandwidth. That allows for Crossfire and SLI support on the Strix-E.
